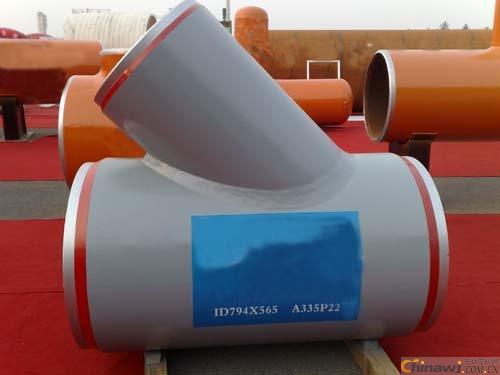

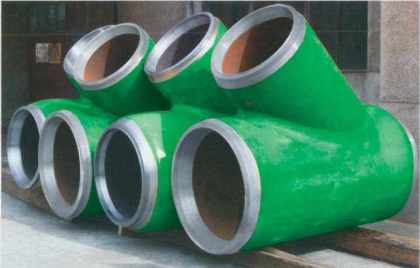

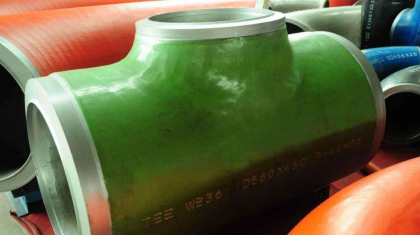

High Pressure Tee

Main Material:WP1, WP11, WP12, WP22, WP5, WP9, WP91, 16Mo3, 10CrMo5-5, 13CrMo4-5, 10CrMo9-10 etc.

Main Processing Technology

Raw material entering factory → Is cut into billet → Flattened to dimension requirement →  Heating convex hole → Hot extrusion forming → Heat treatment → Machined groove → Surface treatment → Finished product inspection → Mark protection → Put in stock

(Note: There is a pickling and passivation process for stainless steel products before surface treatment)

Size

1/2"-120"

Standard

Wall  Thickness

SCH5, SCH10, SCH20, SCH30, SCHSTD, SCH40, SCH60 SCHXS, SCH80, SCH100, SCH120, SCH140, SCH160, SCHXXS

Color

Black, Yellow, Blue, Red. etc as client requirment.

Surface  Coating

Rust-proof oil; Black; Galvanized; Polyethylene Coating; Epoxy Coating, etc

Marking

Marker permanent

Package

Ply-Wooden Case for small size  Pallet for big size

Certificate

BV ISO9000,CRN,CE

The Third Party Inspection

BV,SGS,LOIYD,TUV,and other party alloyed by clients

Brand

TSZHONGRAN

Min Order

1PCS

Payment Terms

T/T, 100% LC AT SIGHT, 100% LC 30 OR 60DAYS AFTER BL OF DATE,

Delivery Time

7-30days according to acutal order.

Delivery Port

TIANJIN, QINGDAO,SHANGHAI, NINGBO, SHENZHEN,

Delivery Ability

3000TONS/MONTH

Applicating

Paper-marking, Oil and natural gas pipeline, Boiler and heat exchanger, Smelting,Water conservancy, Electric power, Chemical, Pharmaceuticals etc

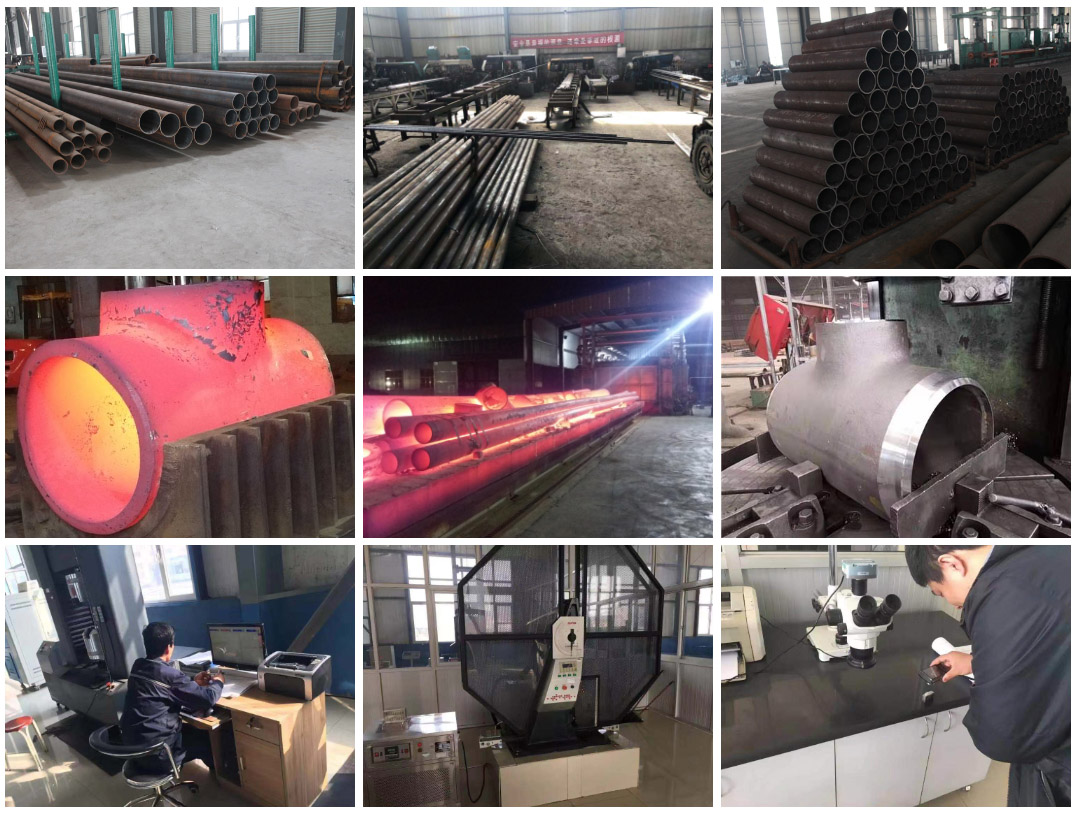

Main Equipment and Installation

1:2500T hydraulic press (mainly used for flattening and hot pressing)

2:500T hydraulic press (mainly used for flattening and hot pressing)

3:315T hydraulic press (mainly used for flattening and hot pressing)

4: 2 heating furnaces in coal combustion: effective heating area 7.5 m2 and 2.3 M2

5: 1 oil-fired heating furnace: effective heating area 6.4 M2

6: 1 pipe blanking machine (self-made)

7: Machining equipment: lathe (620-1), two vertical lathes: C5225, one ordinary lathe, C630, two vertical drilling machines, one T6112

8: Heat treatment equipment: 1 trolley type oil-fired heat treatment furnace, 8 M2 trolley type box type resistance furnace RT9-80*1500*60, the highest furnace temperature 1200℃

9: Sandblasting machine 2 sets: mainly used for surface rust removal of pipe fittings

10: Air compressor: air cooling for heat treatment

11: Liquid Cooling Pool: Used for Tube Cooling (Processing and Heat Treatment) Solid Solution Treatment of Stainless Steel

12: Machining Fixture: 40 sets

13: Welding equipment: 14 sets (processing aids)

14: Various moulds: 120 sets for extrusion forming guarantee
